FCP Series Thermostats

Programmable and Non-Programmable Thermostats for Fan Coil Units and PTACs

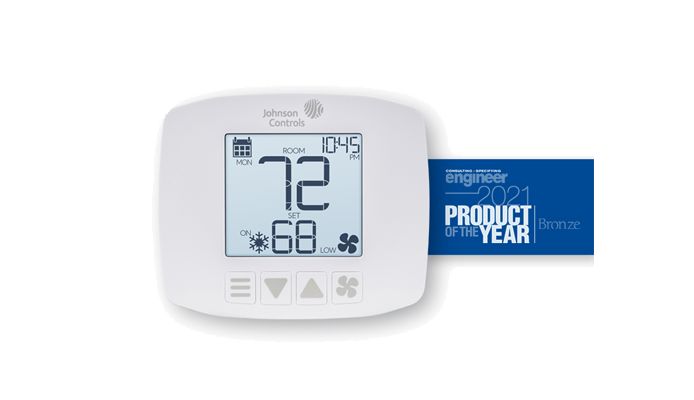

A thermostat from the FCP Series, with a blue 'Product of the Year' banner beside it

FCP Series Thermostats

Programmable and Non-Programmable Thermostats for Fan Coil Units and PTACs

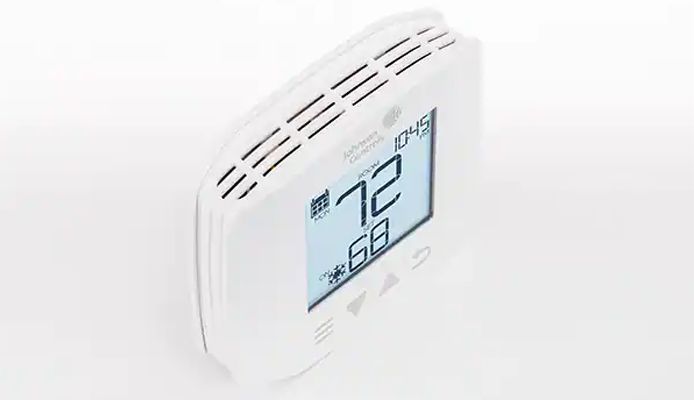

A three-quarters view of an FCP Series thermostat

Non Programmable Non Connected Fan Coil or PTAC Thermostats

Contact Us

Product Overview

Controlling 2-pipe or 4-pipe fan coil units or PTACs is now simple, with FCP 7-Day Programmable and FCP Non-Programmable Thermostats. These thermostats provide on/off control, up to three speeds of fan control, and dry contact unoccupied or occupied control. They can be used as stand-alone devices in a variety of buildings, including schools, offices and hotels, and can provide access to parameters such as system mode, fan mode and temperature setpoints. What’s more, the programmable FCP thermostat is available in a no-fan version, the FCP-PA-701-NF, which is ideal for single stage heating/cooling applications without fans, and for baseboard and radiant heating systems with remote sensors.

Product Overview

FCP Series Thermostats

Programmable and Non-Programmable Thermostats for Fan Coil Units and PTACs

Features

  • Compatible with: 2-pipe FCU with up to a 3-speed fan
  • Compatible with: 4-pipe FCU with up to a 3-speed fan
  • Compatible with: Conventional PTAC
  • Compatible with: Heat pump PTAC with or without auxiliary heat
  • Pre-installed lead wires for fast installation
  • 20 easy pre-set configurations for installers and users
  • Configurable “normally open / normally closed” contact, to set the occupied or unoccupied mode
  • On-board and remote temperature sensors available
  • White LED backlight, with adjustable brightness for easy operation in the dark
  • FCP-PA-701-NF is a no-fan version of the programmable FCP, designed primarily for fan coils with independent fans and heat-only applications where no fan is needed
  • FCP-PA-701 features up to six programmable periods per day
  • FCP-PA-701 features an RTC backup battery with a minimum backup time of 48 hours
  • Temperature in Fahrenheit or Celsius
